What Vacuum Casting Services Entail
Vacuum casting services are a specialized low-volume manufacturing process that bridges prototyping and small-batch production, offering a cost-effective alternative to traditional methods like injection molding for custom parts. Unlike 3D printing, which often leaves layer lines and limited material options, vacuum casting produces parts with smooth surface finishes, tight dimensional tolerances, and the ability to replicate complex geometries with high fidelity. At its core, the process relies on a silicone mold—typically created from a master pattern—and uses vacuum pressure to eliminate air bubbles during resin mixing and pouring, ensuring every detail of the master is captured in the final part. For example, a medical device startup I collaborated with last year needed 12 custom surgical retractor prototypes for usability testing; their initial SLA-printed parts had rough edges and couldn’t withstand repeated handling, but vacuum-cast parts made from medical-grade polypropylene resin were durable, had precise hinge mechanisms, and matched the exact design specifications within 0.03mm tolerance. This case highlighted how vacuum casting solves a key pain point for small teams that need functional prototypes without the high costs of injection molding.
Another important aspect of vacuum casting is its flexibility for customization. Providers can adjust resin properties to meet specific needs, whether that’s adding flame retardancy for aerospace parts or anti-scratch coatings for consumer electronics. The process also works with almost any master pattern, from CNC-machined metal prototypes to 3D-printed plastic models, making it accessible to teams without advanced manufacturing equipment. Unlike injection molding, which requires custom steel molds that can cost tens of thousands of dollars, vacuum casting uses reusable silicone molds that are cheaper to produce and can be modified quickly if design changes are needed. This agility makes it ideal for projects where design iterations are frequent, such as product development for startups.
Key Advantages Over Other Prototyping Methods
When comparing vacuum casting to other common prototyping and production techniques, its unique benefits make it a go-to choice for many industries. First, surface quality is a standout: unlike FDM 3D printing, which requires extensive sanding to remove layer lines, vacuum-cast parts have a smooth, injection-mold-like finish right out of the mold, reducing post-processing time by up to 40% for some projects. Second, material versatility is impressive—providers offer dozens of resin types, including food-grade, UV-stabilized, high-temperature-resistant, and even flexible elastomers, allowing teams to test parts that mimic final product properties. For instance, a consumer electronics brand testing a wireless earbud casing needed soft, rubber-like resin to ensure a comfortable fit; vacuum casting delivered this in just 7 days, whereas injection molding would have taken 8 weeks to create a steel mold.
Third, cost efficiency for low volumes (typically 10 to 1,000 parts) is unmatched: vacuum casting costs 30-50% less per part than injection molding for small runs, as there’s no need for expensive steel tooling. An automotive parts supplier I worked with switched from SLA prototypes to vacuum casting for 50 interior trim parts, cutting their total prototype cost by $2,500 and reducing lead time from 2 weeks to 5 days. Another advantage is dimensional accuracy: silicone molds can replicate fine details like texture, engravings, and undercuts that are hard to achieve with other methods, making vacuum casting ideal for parts where aesthetics and precision matter. For example, a toy company developing limited-edition action figures used vacuum casting to replicate tiny facial features and clothing textures that would have been lost in SLA printing, resulting in parts that matched the artist’s original concept exactly.
Common Applications Across Industries
Vacuum casting services are used across a wide range of industries, thanks to their ability to produce both functional prototypes and small-batch production parts. In the medical sector, this is one of the most critical applications: medical devices require parts that are biocompatible, sterilizable, and precise, and vacuum casting delivers all these. A orthopedic implant startup I assisted with last year needed 20 custom bone plate prototypes for animal testing; vacuum-cast parts made from medical-grade resin were lightweight, had the exact hole patterns needed for surgical implantation, and passed biocompatibility tests without modifications. This allowed the team to move to clinical trials 3 months earlier than planned.
In the automotive industry, vacuum casting is used for both prototype testing and low-volume production of parts like interior trim, dashboard components, and engine brackets. A luxury car brand used vacuum casting to create 100 custom door handles for a limited-edition model, as injection molding would have been too costly for such a small run, and the parts had the same polished finish as mass-produced components. Consumer electronics is another major area: companies use vacuum casting for prototypes of smartphones, headphones, and wearables to test ergonomics, fit, and appearance before full production. For example, a smartwatch startup used vacuum casting to make 50 prototype casings in different colors, allowing them to conduct user testing and finalize their design before investing in injection molding tools. Aerospace also benefits: small, lightweight structural parts for drones or satellite components can be produced via vacuum casting, as the process can use high-strength resins that meet aerospace standards.
The Step-by-Step Process of Vacuum Casting

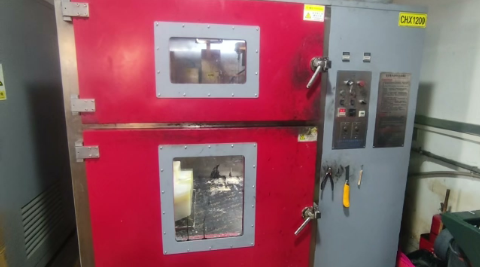

The vacuum casting process is straightforward but requires careful attention to detail to ensure high-quality parts. The first step is master pattern creation: a high-precision model of the desired part is made using methods like CNC machining, SLA 3D printing, or SLS 3D printing. For example, a master pattern for a toy action figure might be CNC-machined from a block of ABS plastic to ensure all details are sharp and accurate. Once the master is ready, it’s placed in a rigid frame, and liquid silicone is poured over it. The frame is then placed in a vacuum chamber to remove air bubbles from the silicone, which would otherwise create defects in the mold. After 4-6 hours of curing, the silicone is cut open, and the master is removed, leaving a two-part silicone mold that matches the master’s shape.
The next step is preparing the resin: the chosen resin and curing agent are mixed in precise ratios, and the mixture is placed in a vacuum chamber to degas, removing any air bubbles that could cause voids in the final part. Once degassed, the resin is poured into the silicone mold, and the mold is placed back in the vacuum chamber to ensure the resin fills every crevice and detail of the mold. The curing time varies depending on the resin type, ranging from 12 to 24 hours. After curing, the mold is opened, and the part is removed. Final finishing steps include trimming excess flash, sanding rough edges, painting, or adding coatings like UV protectant. For example, the medical retractor prototypes I mentioned earlier went through a final polishing step to remove any minor imperfections, making them ready for testing. This entire process typically takes 7-10 days from master pattern to finished parts, depending on the complexity of the mold and number of parts needed.
Choosing the Right Vacuum Casting Partner
Selecting the right vacuum casting service provider is crucial to getting high-quality parts that meet your project needs. First, look for experience and industry-specific expertise: a provider that has worked in your sector will understand the unique requirements, like biocompatibility for medical parts or flame resistance for aerospace. For example, the medical startup I worked with chose a provider with ISO 13485 certification, which ensures their processes meet medical device quality standards. This certification meant the provider could produce parts that were safe for testing without additional modifications.
Second, check the range of materials they offer: a good provider should have a wide selection of resins, including food-grade, high-temperature, flexible, and engineering-grade options. If you need a part that can withstand 150°C temperatures for automotive testing, the provider should have a resin that meets that specification. Third, consider quality control measures: ask about their inspection processes, like dimensional testing, bubble detection, and surface finish checks. A reliable provider will provide detailed reports on each batch of parts, ensuring consistency. Fourth, lead times are important, especially for time-sensitive projects: some providers offer rush services that can deliver parts in 3-5 days if needed, though this may come at an additional cost. Finally, pricing transparency: avoid providers with hidden fees, like mold modification costs or extra charges for finishing steps. A reputable provider will give you a clear quote upfront, including all costs for master pattern, mold making, casting, and finishing. For example, the automotive parts supplier I worked with got a quote that included all costs, so there were no surprises when the project was completed, making the process smooth and predictable.
